Bad Boy Implements

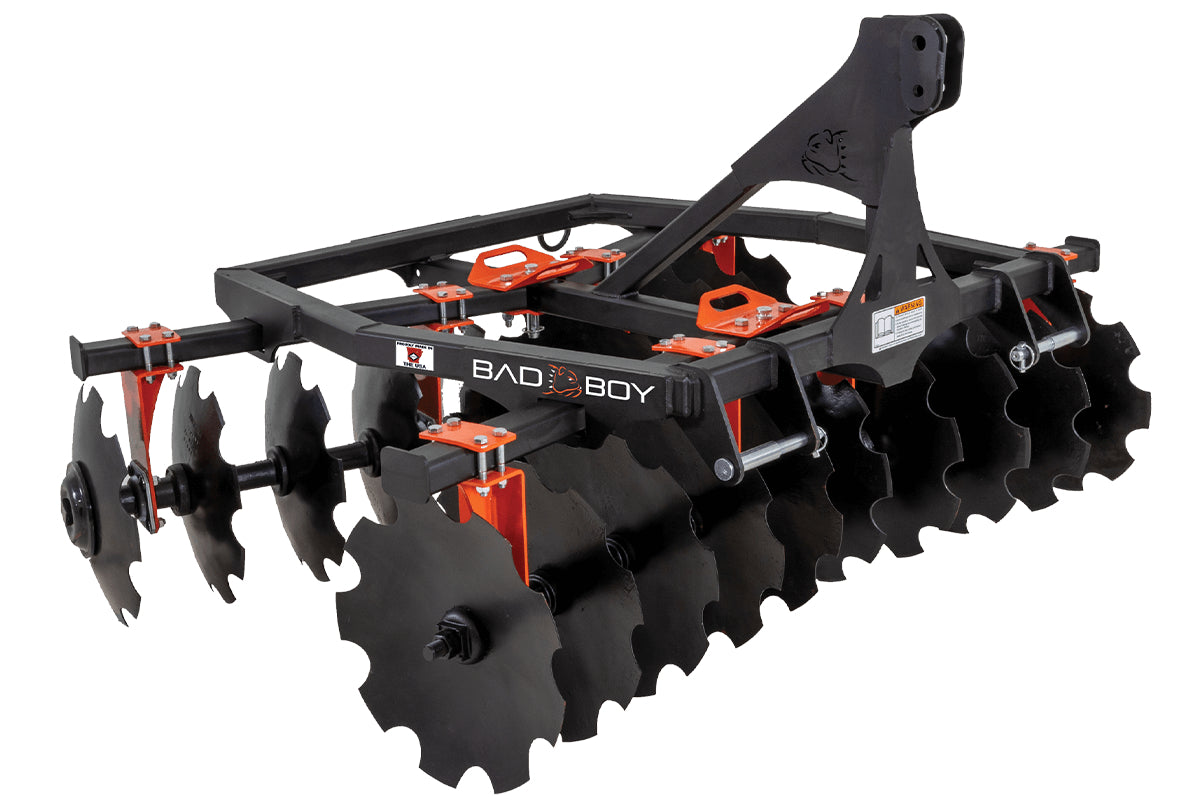

3-Point Disc Harrow

3-Point Disc Harrow

$2,075.00 USD
$2,818.00 USD $2,075.00 USD
Sale Sold out
Disc Harrow Width

3-POINT DISC HARROW

AVAILABLE IN 4, 5, 6 & 7 FOOT WIDTHS

DISC HARROW SPECIFICATIONS

4' DISC HARROW

Hitch
CAT 1
Disc Blade Size
16"
Number of Disc/Gang
3
Disc Spacing
7 1/2"
Main Frame
2" x 2" x .180" Carbon Steel Tube
Disc Gang Tube
2" x 2" x .180" Carbon Steel Tube
Disc Gang Axel
1" Carbon Steel
Angle - Front Gang
0°, 7° & 14° to the Front
Angle - Rear Gang
0°, 7° & 14° to the Rear
Weight
402 lbs.

5' DISC HARROW

Hitch
CAT 1
Disc Blade Size
16"
Number of Disc/Gang
4
Disc Spacing
7 1/2"
Main Frame
2" x 2" x .180" Carbon Steel Tube
Disc Gang Tube
2" x 2" x .180" Carbon Steel Tube
Disc Gang Axel
1" Carbon Steel
Angle - Front Gang
0°, 7° & 14° to the Front
Angle - Rear Gang
0°, 7°, & 14° to the Rear
Weight
449 lbs.

6' DISC HARROW

Hitch
CAT 1, CAT 2
Disc Blade Size
18"
Number of Disc/Gang
5
Disc Spacing
7 1/2"
Main Frame
2.5" x 2.5" x 0.25" Carbon Steel Tube
Disc Gang Tube
2" x 3" x 0.25" Carbon Steel Tube
Disc Gang Axel
1" Carbon Steel
Angle - Front Gang
0°, 7°, 14°, 21°
Angle - Rear Gang
0°, 7°, 14°, 21°
Weight
702 lbs.

7' DISC HARROW

Hitch
CAT 1, CAT 2
Disc Blade Size
18"
Number of Disc/Gang
6
Disc Spacing
7 1/2"
Main Frame
2.5" x 2.5" x 0.25" Carbon Steel Tube
Disc Gang Tube
2" x 3" x 0.25" Carbon Steel Tube
Disc Gang Axel
1" Carbon Steel
Angle - Front Gang
0°, 7°, 14°, 21°
Angle - Rear Gang
0°, 7°, 14°, 21°
Weight
770 lbs.
